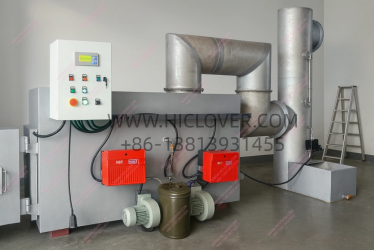

Pet Cremation Incinerator System (30–50 kg/h) HICLOVER TS50PET

HICLOVER TS50PET

Pet Cremation Incinerator System (30–50 kg/h)

Product Overview

The HICLOVER TS50PET Pet Cremation Incinerator is a purpose-designed, industrial-grade cremation system engineered for the dignified and environmentally responsible disposal of animal remains. Designed around proven dual-chamber incineration principles and enhanced flue-gas treatment stages, the TS50PET delivers stable high-temperature combustion, low residue generation, and reliable operation for veterinary clinics, animal hospitals, municipal animal control centers, and professional pet cremation facilities.

With flexible fuel options (diesel, natural gas, or LPG), optional wet flue-gas treatment, and multiple mobile configurations, the TS50PET adapts to diverse site conditions while maintaining consistent cremation performance and operator safety.

Waste Type & Process

Waste Type: Pet cremation (animal remains)

Treatment Method: High-temperature incineration

Target Capacity: 30–50 kg/hour

Feed Mode: Manual batch feeding

System Configuration

The TS50PET integrates a multi-stage combustion and flue-gas management layout to ensure complete oxidation and controlled emissions:

Primary Combustion Chamber
Direct cremation of animal remains under controlled high temperature.

Particulate Sedimentation and Flue Gas Retention Chamber
Reinforced gas-conditioning chamber for particulate settling and extended flue-gas residence time.

Mix Combustion Chamber
High-temperature mixing zone to enhance oxidation and stabilize gas flow before secondary treatment.

Secondary Combustion Chamber
Complete oxidation of flue gases generated from the primary chamber, ensuring destruction of odors and organic compounds.

Chimney System
6-meter stainless-steel (SS304) stack for safe and stable discharge.

Control System
PLC-based automatic control with safety interlocks, alarms, and operating logic.

Typical HICLOVER System Features

Dual-chamber incineration with extended gas residence time (≥ 2.0 seconds)

High-temperature retention (HTR) with adjustable control logic

Italy-brand burners with automatic ON/OFF operation

Intelligent fuel-saving and temperature-linked burner control

APO (Automatic Protection Operator) system for operator safety

Dry scrubber included as standard; wet scrubber available as an option

Modular design suitable for fixed or mobile deployment

Heavy-duty refractory structure for long service life

Simple operation, low maintenance, and high reliability

Pet Cremation–Dedicated Design

The TS50PET is specifically optimized for pet cremation applications:

Chamber volumes matched to animal body size for efficient heat utilization

Stable flame and temperature control to ensure respectful, complete cremation

Low ash residue (≤ 5%), easy ash handling, and movable waste/ash bed

Odor-controlled operation through secondary combustion and optional wet scrubbing

Quiet, clean, and compact layout suitable for urban or clinic environments

Key Technical Data (HICLOVER TS50PET)

Capacity & Operation

Burn Rate (Average): 20–30 kg/h

Design Capacity: 30–50 kg/h

Feed Capacity: 50–80 kg per feeding

Residency Time: ≥ 2.0 seconds

Combustion Chambers

1#Primary Chamber Volume: 560 L

2#Particulate Sedimentation & Gas Retention Chamber: 180 L

3#Mix Combustion Chamber: 50 L

4#Secondary Chamber Volume: 280 L

Temperature Range

Primary Chamber: 800–1000 °C

Secondary Chamber: 1000–1300 °C

Fuel & Consumption

Fuel Type: Diesel / Natural Gas / LPG

Diesel Consumption (Theoretical): ~14 kg/h

Natural Gas Consumption: ~16 m³n/h

Burner Configuration

Primary Chamber: G10LC single-stage burner ×1 (8 kg/h)

Secondary Chamber: G10LC single-stage burner ×1 (8 kg/h)

Electrical System

Voltage: 220 / 380 V

Power: 0.7 / 3.0 kW

Control & Safety

PLC Automatic Control

Continuous feeding protection sensors

Temperature monitoring with corundum probe tube (1600 °C rated)

Automatic cooling, alarms (display / voice / light), and system testing mode

Structure & Materials

Hot Face Refractory: ≥115 mm, 65% Al₂O₃, 1750 °C grade

Cold Face Insulation: High-grade refractory ceramic fiber

Chimney: SS304, 6 m height

External Paint: 250 °C heat-resistant coating

Dimensions & Weight

External Dimensions: 190 × 130 × 155 cm

Gross Weight: 5,000–7,000 kg

Flue Gas Treatment Options

Dry Scrubber: Included

Wet Scrubber (Optional):

First-stage stainless-steel spray tower (primary scrubber)

Second-stage stainless-steel spray tower (secondary scrubber)

Stainless-steel demister tower

Stainless-steel demisting & dust-removal filter

Integrated water tank with induced draft (ID) fan

Optional Configurations

Containerized mobile type

Trailer-mounted or sledge-mounted mobile versions

Dual-fuel (oil & gas) system

Flame observation window

Fire grate

Heat Recovery Technology (HHT)

Compliance & Manufacturing

CE compliance: 2006/42/EC, 2014/30/EU

ISO 9001:2015 certified manufacturing

No asbestos or mercury-containing materials

High-tech enterprise certification

HICLOVER TS50PET delivers a balanced combination of traditional dual-chamber incineration principles and forward-looking modular design, providing a dependable, clean, and respectful solution for modern pet cremation operations.
